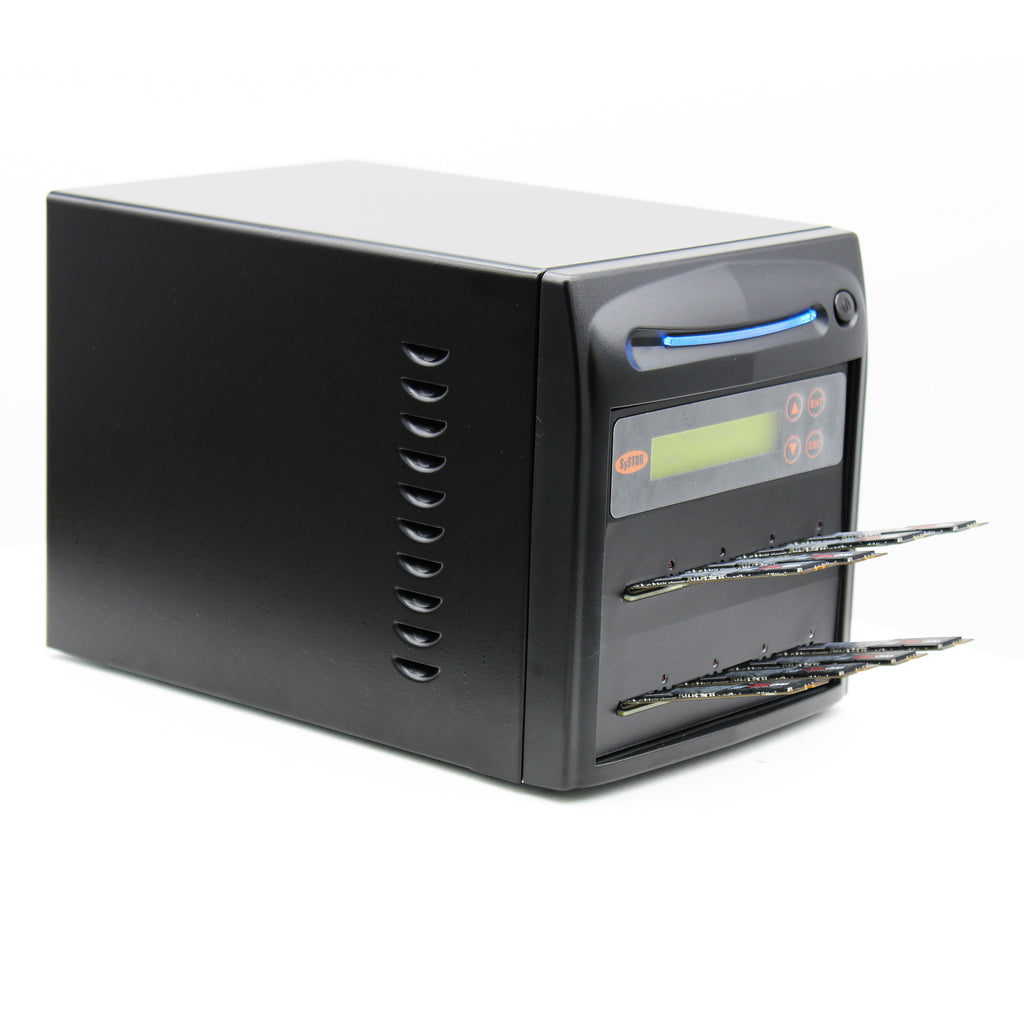

Systor 1 to 7 M.2 SATA/NVMe Duplicator & Sanitizer - up to 24GB/Min - for PCIe M2 Drives (SYSNVME-NX407)

Description

* LEAD TIME: 12-17 BUSINESS DAYS

DESCRIPTION
SPECIFICATIONS

Systor M.2 NVMe PCIe duplicators are completely standalone units that can clone or sanitize a number of different media types. Easily insert and copy (or erase) either NVMe M.2 or SATA M.2 drives with a single touch of a button. These duplicators consistently perform copy sessions with no speed degradation even when the number of target devices increase. Various copying and erasing modes help in managing different task requirements for duplicating and wiping your storage media. These high-speed, high-performance M2 copiers are the perfect solution for business (small to enterprise), education, and government entities (military, law enforcement, etc.) where copying and erasing device data needs to be accomplished with precision and minimal time.

* Duplication speed will vary depending on read/write transfer rates of master (source) and target (blank) drives.

FLEXIBLE CROSS INTERFACE DUPLICATION

Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another, such as:

NGFF SATA M.2 SSD
NVME PCIe M.2 SSD
AHCI

M.2 PCIe NVMe duplicator SATA M and B+M key NGFF
AHCI

NVME SIZE COMPATIBILITY

Compatible with all sizes of:

NVME M.2 SSD (Types 2230, 2242, 2260, 2280, 3030, 3042, 3060, 22110, 3080)
PCIe SSD (full and low profiles)

M.2 PCIe NVMe drive sizes 2230 2242
2260 2280 22110 3030 3042 3060 3080

INTELLIGENT DUPLICATION
(COPY MODES)


Systems and Files (Quick Copy Mode): Copies only the data area and skips empty space, reducing the copy duration time.		All Partitions: Can be set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.

Whole Media: Copies from the initial sector to the end, bit-by-bit. There are no format limitations in this mode. Supports all systems and proprietary formats, along with various brands.		Percentage Copy: Set a selected percentage of source/master capacity to copy.

SKIP BAD SECTORS

Select the numbers of bad sectors to skip from the source drive (ranging from 0 to unlimited) during copy, compare, or erase functions.

SANITIZATION METHODS
(ERASE MODES)


Quick Erase: Erases the device's index table, and only takes a few seconds to complete.		Full Erase: Erases the entire device

DoD Erase: Complies with the erasure standards of the U.S. Department of Defense (DoD) 5220.22-M.		Secure Erase: Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.

COMPARE FUNCTION + CRC CHECKSUM

Performs bit-by-bit cyclic redundancy check (CRC) to ensure copies are identical for every duplication session. CRC checksum bit by bit comparison

PRODUCT FEATURES
Features	Descriptions
Operation Type	Stand-alone, FPGA-based design (no PC required)
Controller Design	Embedded controller is designed to support capacities over 18TB+. Constant improvement supports latest market-available devices.
Devices Supported	Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another, such as: NGFF SATA M.2 SSD NVME PCIe M.2 SSD AHCI
Hot Swap Supported	Supports hot swapping of devices.
Bandwidth Performance	Peak transfer speeds up to 24GB/min. (400MB/sec.) Actual performance is dependent on media transfer speeds. Dedicated bandwidth enables high-volume replications without speed degradation.
Read-Only Or Eraseable Source Port	Built-in feature. Enables/disables source media to be erased/sanitized during erase process.
Modular Port Design	Replace ports easily to reduce downtime and for cost-effective long-term usage.

PRODUCT FUNCTIONS
Features	Descriptions
Copy Modes	System and Files (Quick Copy Mode): Copies data and skips empty space. Only supports Windows, Mac, and Linux. All Partitions: Set to copy or skip HPA, DCO, unknown partitions, modified formats, etc. Whole Media: Copies from the initial sector to the end, bit-by-bit. No format limitations. Supports all systems and proprietary formats, along with various brands. Percentage Copy: Set a selected percentage of source/master capacity to copy.
Compare (Verification)	Compares the copied target devices against the source for accuracy.
Sanitization Modes	Quick Erase: Erases the device's index table, and only takes a few seconds to complete. Full Erase: Erases all data from the device by overwriting each sector. DoD 3-pass Erase: Complies with the 3-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M. DoD EraseComp: Erases entire device(s) and verifies complete erasure, in compliance with the DoD 5220.22-M standard. Secure Erase: Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.
Skip Bad Sectors	Set number of bad sectors to skip during Copy/Compare/Erase.

PRODUCT COMPATIBILITIES
Compatibilities	Descriptions
Compatible Devices	NGFF (M.2): 2230, 2242, 2260, 2280, 3030, 3042, 3060, and 3080. NVMe M.2 SATA M.2 Supports B+M Key or M Key only
Supported Formats	Quick Copy Function: Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX). Whole Device Copy Function: All Formats, including proprietary formats.
Supported O/S	All (Windows, Mac, Linux, and other proprietary systems).

PRODUCT SPECIFICATIONS
Specifications	Descriptions
LCD Display	2 x 20 Backlit Monochrome LCD Display
Control Panel	4 Push Buttons (▲, ▼, OK, ESC)
Power Requirements	AC 100~240 V
Operational Temperature	41°F ~ 113°F (5°C ~ 45°C)
Non-operational Temperature	-4°F ~ 185°F (-20°C ~ 85°C)
Humidity	Operating: 20% ~ 80%, non-condensing Non-operating: 5% ~ 95%, non-condensing
Packaging Dimensions (L×W×H)	9.25 in x 10.25 in x 14.25 in
Shipping Weight	11 lbs.
Certifications	FCC, CE, RoHS, and REACH

* Specifications are subject to change without notice.
