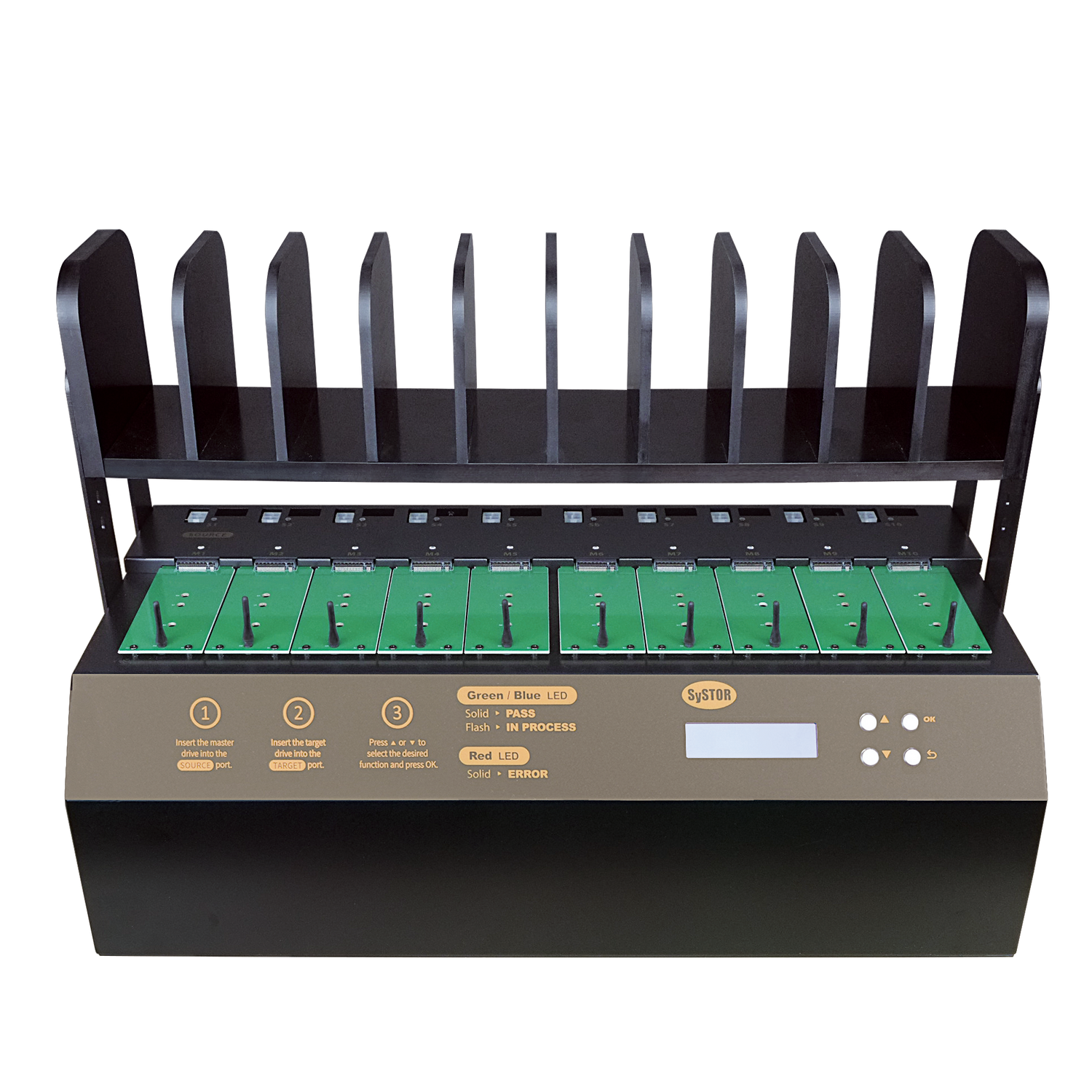

Systor 1 to 9 M.2 SATA/NVMe Duplicator & Sanitizer - up to 36GB/Min - for PCIe M2, 2.5" & 3.5" HDD & SSD Drives (SYSNVME-YL06PRO09)

NVME SIZE COMPATIBILITY

• 2230
• 2242
• 2260
• 2280

FLEXIBLE CROSS INTERFACE DUPLICATION

• NVMe M.2
• SATA M.2
• SATA 3.5" HDD
• SATA 2.5" HDD
• SATA 2.5" SSD

DOWNLOADABLE & PRINTABLE EVENT LOG

Assists users with monitoring, recording, and managing the entire duplication process.

View and analyze detailed information for each port such as job status, date/time stamps, and drive identification numbers.

Connect the Log File Printer* for event log printouts.

* Sold separately

CUSTOMIZABLE SATA HDD RACK

Customize the configuration of the SATA HDD rack to best utilize space in your work area.

Slot dividers keep your HDDs in place during duplication.

DAISY CHAIN MULTIPLE NVME DUPLICATORS

Connect multiple NVMe duplicators together to increase the amount of copies you can create at the same time from one source slot of the duplicator.

Note: Only daisy chain same speed models.

• Stand-alone, FPGA-based design (no PC required)

• Embedded controller is designed to support capacities over 18TB+.
• Constant improvement supports latest market-available devices.

• Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another.


• Supports hot swapping of devices.

• Peak transfer speeds up to 36GB/min. (600MB/sec.)

• Actual performance is dependent on media transfer speeds.
• Dedicated bandwidth enables high-volume replications without speed degradation.

• Built-in feature. Enables/disables source media to be erased/sanitized during erase process.


• Replace ports easily to reduce downtime and for cost-effective long-term usage.

• System and Files (Quick Copy Mode):
  Copies data and skips empty space. Only supports Windows, Mac, and Linux.
• All Partitions:
  Set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.
• Whole Media:
  Copies from the initial sector to the end, bit-by-bit. No format limitations. Supports all systems and proprietary formats, along with various brands.
• Percentage Copy:
  Set a selected percentage of source/master capacity to copy.

• Compares the copied target devices against the source for accuracy.


• Quick Erase:
  Erases device's index table, and only takes a few seconds to complete.
• Full Erase:
  Erases all data from the device by overwriting each sector.
• DoD 3- pass Erase:
  Complies with the 3-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M.
• DoD 7- pass Erase:
  Complies with the 7-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M ECE.
• Secure Erase:
  Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.

• Enhanced Secure Erase:
  Complies with SSD erasure standards of the National Institute of Standards and Technology (NIST) 800-88.

• Erase HPA:
  Remove the drives' HPA (Host Protected Area) to free up space.
• Erase DCO:
  Remove the drives' DCO (Device Configuration Overlay) partition.

• Check for bad sector, storage capacity or speed. Use this enhanced function to determine if the M.2 NVMe modules are in optimal condition.

• NGFF (M.2): 2230, 2242, 2260, and 2280
• NVMe M.2
• SATA M.2
• SATA 3.5" HDD
• SATA 2.5" HDD
• SATA 2.5" SSD

• Quick Copy Function: Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX).
• Whole Device Copy Function: All Formats, including proprietary formats.

• All (Windows, Mac, Linux, and other proprietary systems).

• 2 x 20 Backlit Monochrome LCD Display

• 4 Push Buttons (▲, ▼, OK, ESC)

• AC 100~240 V

• 41°F ~ 113°F (5°C ~ 45°C)

• -4°F ~ 185°F (-20°C ~ 85°C)

• Operating: 20% ~ 80%, non-condensing
• Non-operating: 5% ~ 95%, non-condensing

• 1 to 4: 20 x 17.5 x 13 inches
• 1 to 9: 25 x 20 x 13 inches

• 1 to 4: 17 lbs.
• 1 to 9: 22 lbs.

• FCC, CE, and RoHS
